Application range
Pressure:P=0·1.0MPa
Temperature:t=-20℃~150℃
Rotation speed:V≤3000r/min

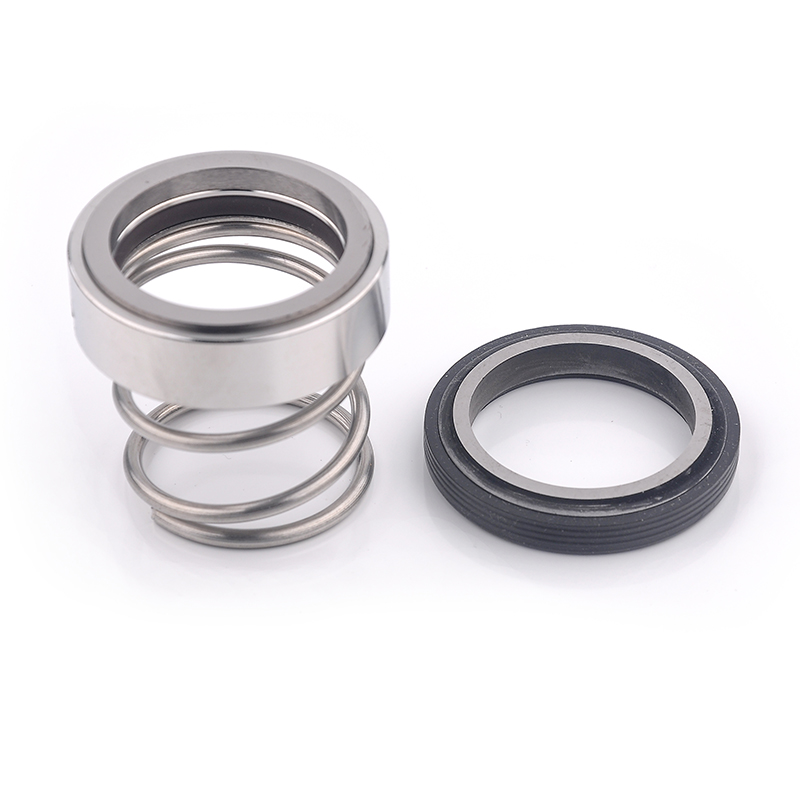

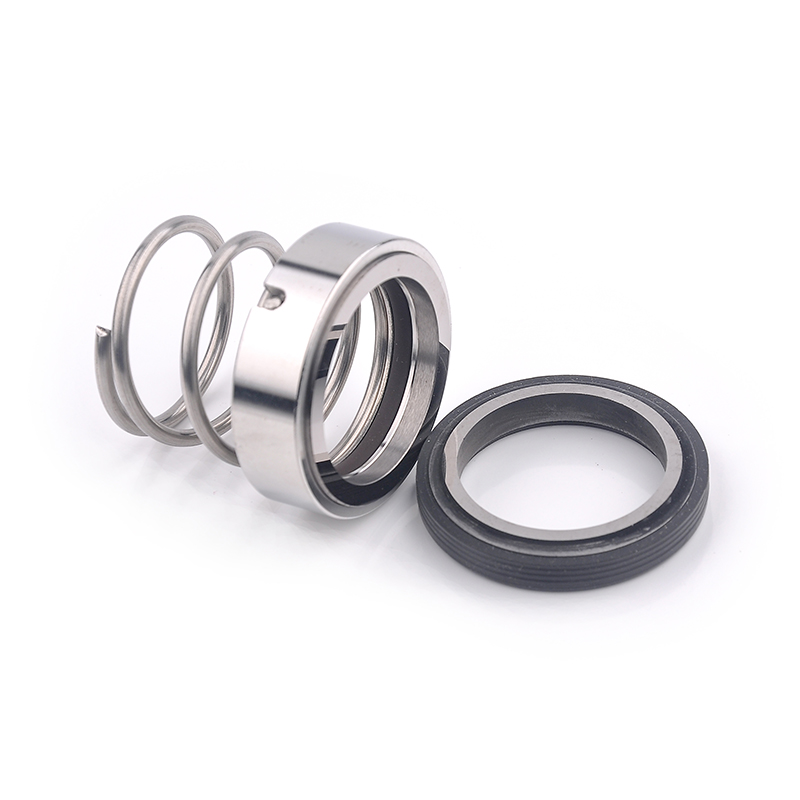

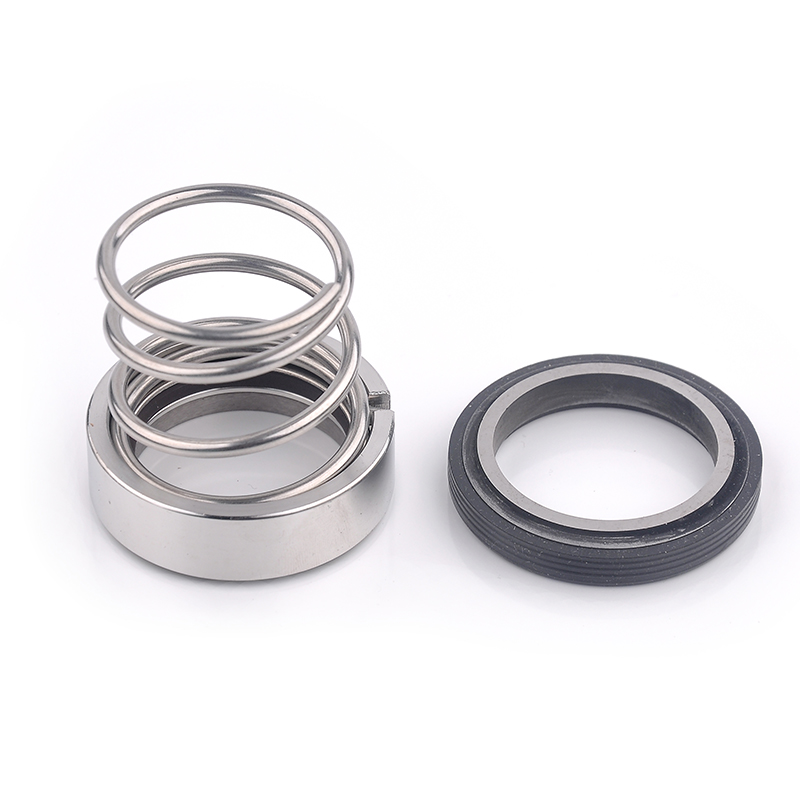

Structuralfeatures
Single end face,non-balancing type structure, conical spring(driven by springs closed with rings at both ends or driven by hook head type springs),fixed rotation direction,O-ring exchangeable with V-ring,in conformity with DIN24960 standard.
型號MODEL | D1 | D3 | D4 | D6 | D7 | L1 | L3 | L6 | L8 |
JD120-18 | 18 | 32 | 34 | 27 | 33 | 28.5 | 18 | 5 | 17 |
JD120-20 | 20 | 34 | 36 | 29 | 35 | 30 | 19.5 | 5 | 17 |
JD120-22 | 22 | 36 | 38 | 31 | 37 | 33 | 22 | 5 | 17.5 |
JD120-25 | 25 | 39 | 41 | 34 | 40 | 35.5 | 24.5 | 5 | 17.5 |
JD120-28 | 28 | 42 | 44 | 37 | 43 | 40 | 28.5 | 5 | 18 |
JD120-30 | 30 | 44 | 46 | 39 | 45 | 41 | 29.5 | 5 | 18 |
JD120-35 | 35 | 49 | 51 | 44 | 50 | 41 | 29.5 | 5 | 18 |
JD120-40 | 40 | 56 | 60 | 51 | 58 | 44.5 | 32.5 | 6 | 19.5 |
JD120-45 | 45 | 61 | 65 | 56 | 63 | 45 | 32.5 | 6 | 20 |
JD120-50 | 50 | 66 | 70 | 62 | 70 | 49 | 35.5 | 6 | 21 |
JD120-55 | 55 | 71 | 75 | 67 | 75 | 52 | 38.5 | 6 | 21 |
