Operating conditions
Temperature:-40℃~125℃
Pressure:≤0.6MPa
Speeds:≤5m/sec
Applications: Used in different pumps, mixers and other rotating equipments which apply to deep-well pump.

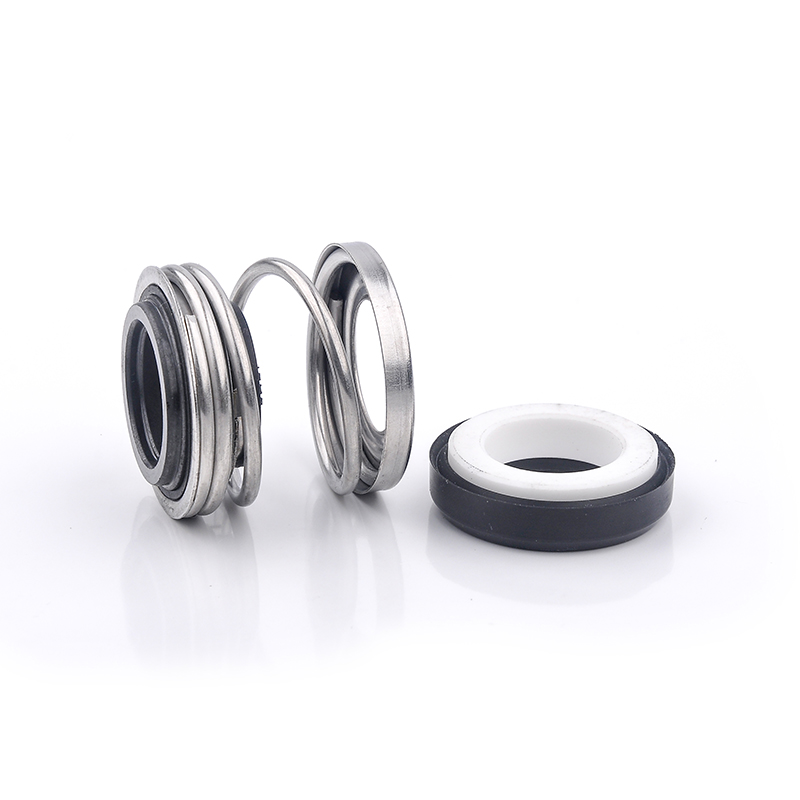

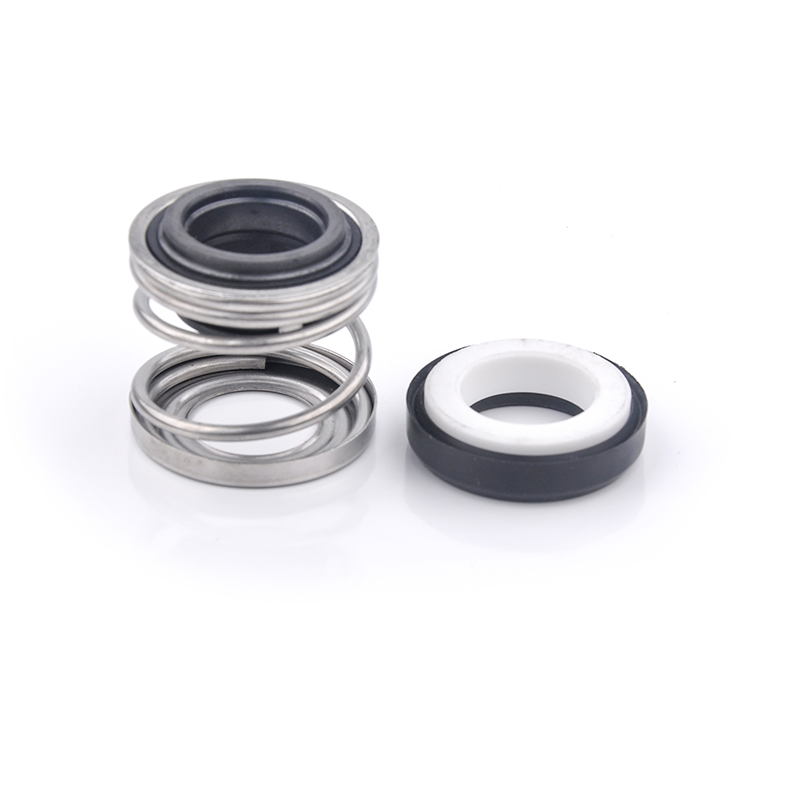

Materials
Rotary ring (Carbon)
Stationary ring(Ceramic/SiC/TC)
Secondary seal(NBRVITON)
Spring & Other parts(SUS304/SUS316)
型號MODEL | D1 | D3 | D7 | L | L3 | L4 |
JD70-12 | 12 | 23.5 | 23/24 | 18 | 13 | 5 |
JD70-13 | 13 | 32 | 28/29.5/30 | 26/28/32 | 18/20/24 | 8 |
JD70-13T | 13 | 29 | 26/28/30 | 23/25.5 | 18 | 5/7.5 |
JD70-14T | 14 | 29 | 26/28/30 | 23/25.5 | 18 | 5/7.5 |
JD70-14 | 14 | 32 | 28/29.5/30 | 26/28/32 | 18/20/24 | 8 |
JD70-15 | 15 | 32 | 28/29.5/30 | 26/28/32 | 18/20/24 | 8 |
JD70-16 | 16 | 32 | 28/29.5/30 | 26/28/32 | 18/20/27 | 8 |
JD70-20 | 20 | 36.5 | 35 | 25 | 17.5 | 7.5 |
JD70-25 | 25 | 42.5 | 40/41 | 32 | 24 | 8 |
JD70-30 | 30 | 50 | 45 | 35 | 27.5 | 7.5 |
